Precision Forged Metal ProductsStainless Steel Profiles, Seamless Rings & Closed Die Blanks (Up to 50 kg)

Certified to ASME, ASTM, DIN, and ISO standards with complete EN 10204 Type 3.1 inspection certification and 100% ultrasonic defect verification.

View Product RangeInstant WhatsApp RFQ
Catalog Filter
8 Products Found
Grade:

Interactive Material Selector

What is the primary operating environment for your forged component?

Forged Steel Flanges (ANSI / ASME / DIN)
flanges

Forged Steel Flanges (ANSI / ASME / DIN)

Zero-porosity forged flanges engineered for extreme pressure offshore oil rigs, refineries, gas transmission lines, and chemical pipelines.

Dimensions:1/2" NB to 48" NB (DN15 – DN1200)
Rating / Tol:Class 150# to 2,500# / PN6 to PN400 (Up to 50 kg)
Steel Grades:SS 304L, SS 316L, SS 304, SS 316, SS 202, ASTM A105 MS, A350 LF2
Inspection:EN 10204 3.1 MTC, 100% UT Tested
View SpecificationsRequest Quote
Seamless Rolled Rings (Up to 50 kg)
rings

Seamless Rolled Rings (Up to 50 kg)

Forged on high-precision radial-axial CNC ring rolling mills providing unbroken circumferential grain orientation and optimal fatigue endurance.

Dimensions:Custom OD/ID up to 50 kg max weight
Rating / Tol:Tensile Strength up to 1,200 MPa
Steel Grades:SS 316L, SS 304L, AISI 4140, 4340, 8620, EN353, C45 MS
Inspection:100% Ultrasonic Testing (UT Class 4), Normalizing / Q&T
View SpecificationsRequest Quote

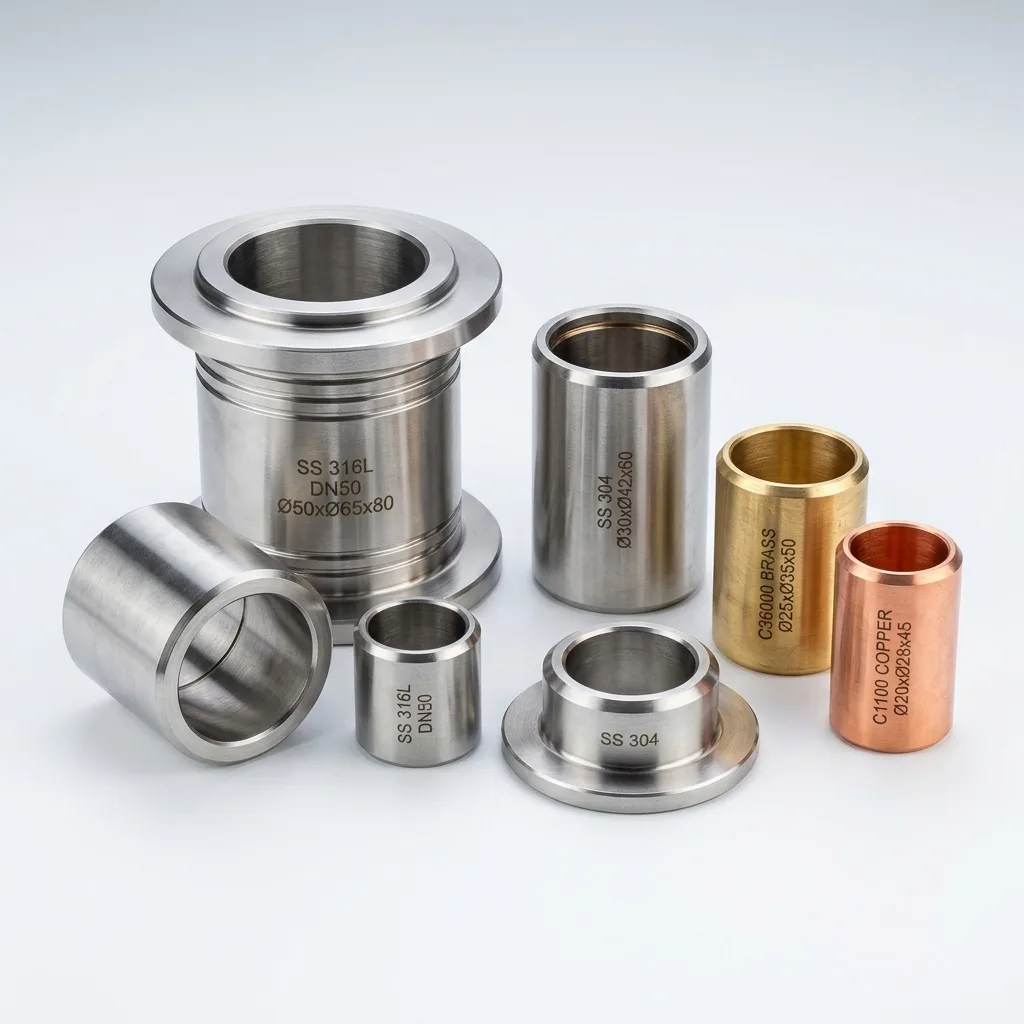

Precision Forged SS & Alloy Bushes / Sleeves
bushes

Precision Forged SS & Alloy Bushes / Sleeves

Heavy-duty forged and machined bushes manufactured in primary SS grades (304, 316, 316L, 304L, 202) as well as Carbon Steel MS, Copper, Brass, and Aluminum for marine pumps, hydraulic cylinders, and chemical equipment.

Dimensions:OD 15 mm to 600 mm (Length up to 800 mm)
Rating / Tol:High Precision OEM Tolerances down to ±0.01 mm
Steel Grades:SS 304, SS 316, SS 316L, SS 304L, SS 202, MS (Mild Steel), Copper, Brass, Aluminum
Inspection:EN 10204 3.1 MTC, 100% CMM & Spectro Tested
View SpecificationsRequest Quote

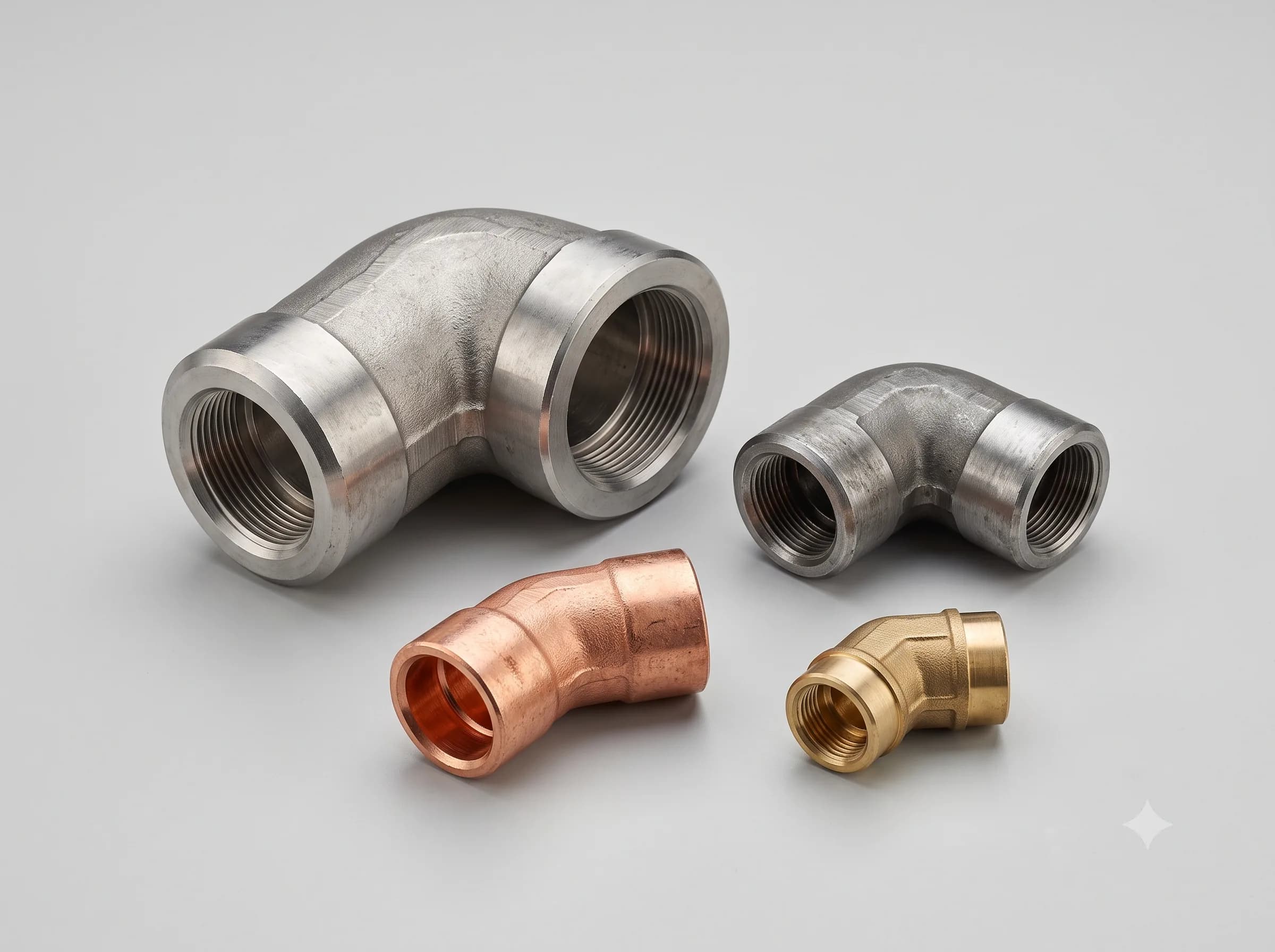

High-Pressure Forged 90° & 45° Pipe Elbows
fittings

High-Pressure Forged 90° & 45° Pipe Elbows

Ultra-heavy-duty forged pipe elbows for high-pressure oil lines, chemical processing systems, and hydraulic manifolds available in SS 304/316/316L/304L/202, Mild Steel, Copper, and Brass.

Dimensions:1/8" NB to 4" NB (DN6 to DN100)
Rating / Tol:3,000# / 6,000# / 9,000# Rating
Steel Grades:SS 304L, SS 316L, SS 304, SS 316, SS 202, MS (A105), Brass, Copper
Inspection:Hydro Tested to 1.5x Rating, 100% DP Inspected
View SpecificationsRequest Quote

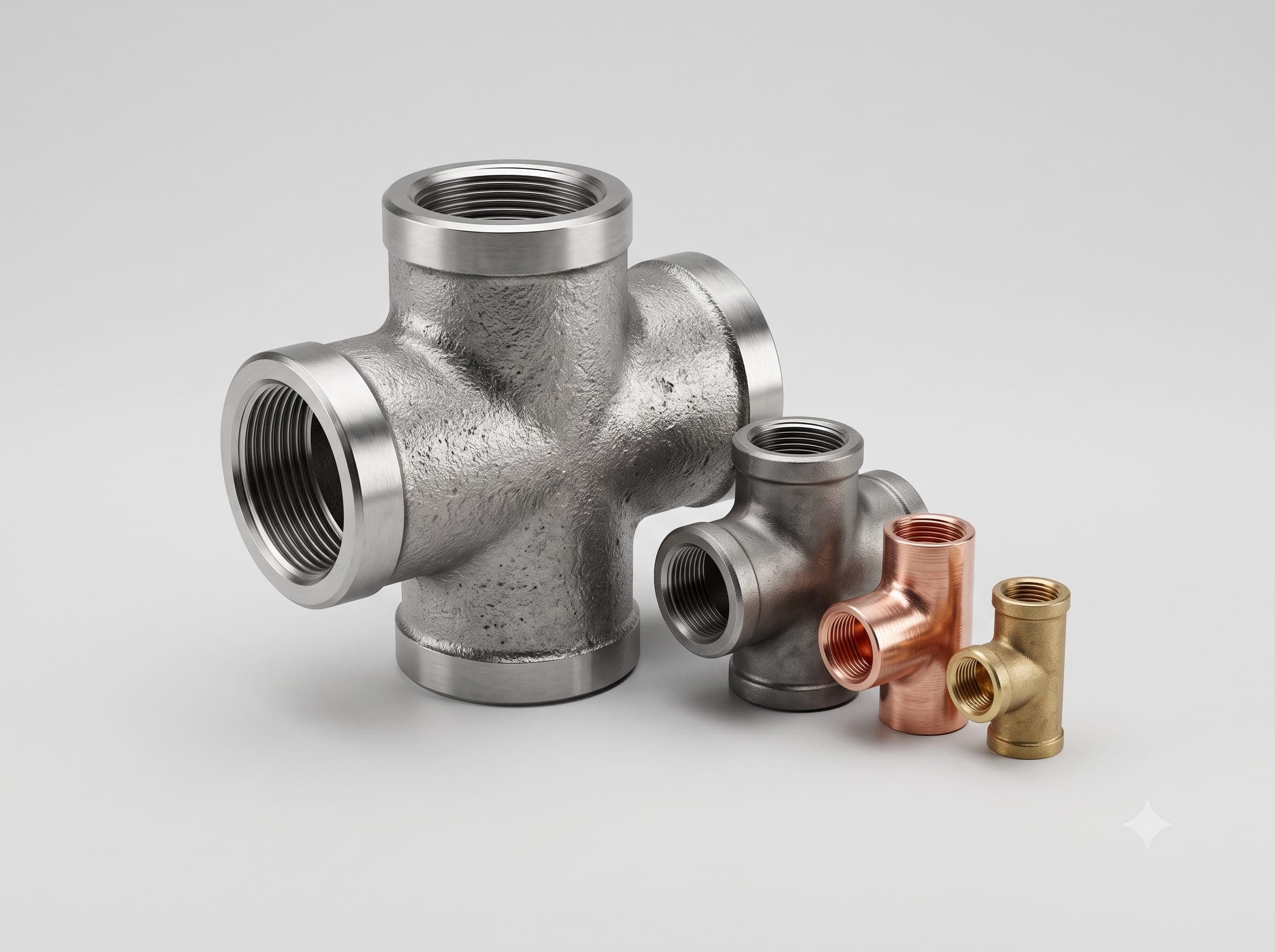

Forged 3-Way Equal & Reducing Tees
fittings

Forged 3-Way Equal & Reducing Tees

High-pressure forged branch pipe tees engineered for leak-free performance in corrosive chemical pipelines, power plants, and subsea hydraulic networks.

Dimensions:1/4" NB to 4" NB (DN8 to DN100)
Rating / Tol:Class 3,000# and Class 6,000#
Steel Grades:SS 316, SS 304, SS 316L, SS 304L, SS 202, MS, Brass, Copper
Inspection:100% Dye Penetrant & Positive Material Identification (PMI)
View SpecificationsRequest Quote

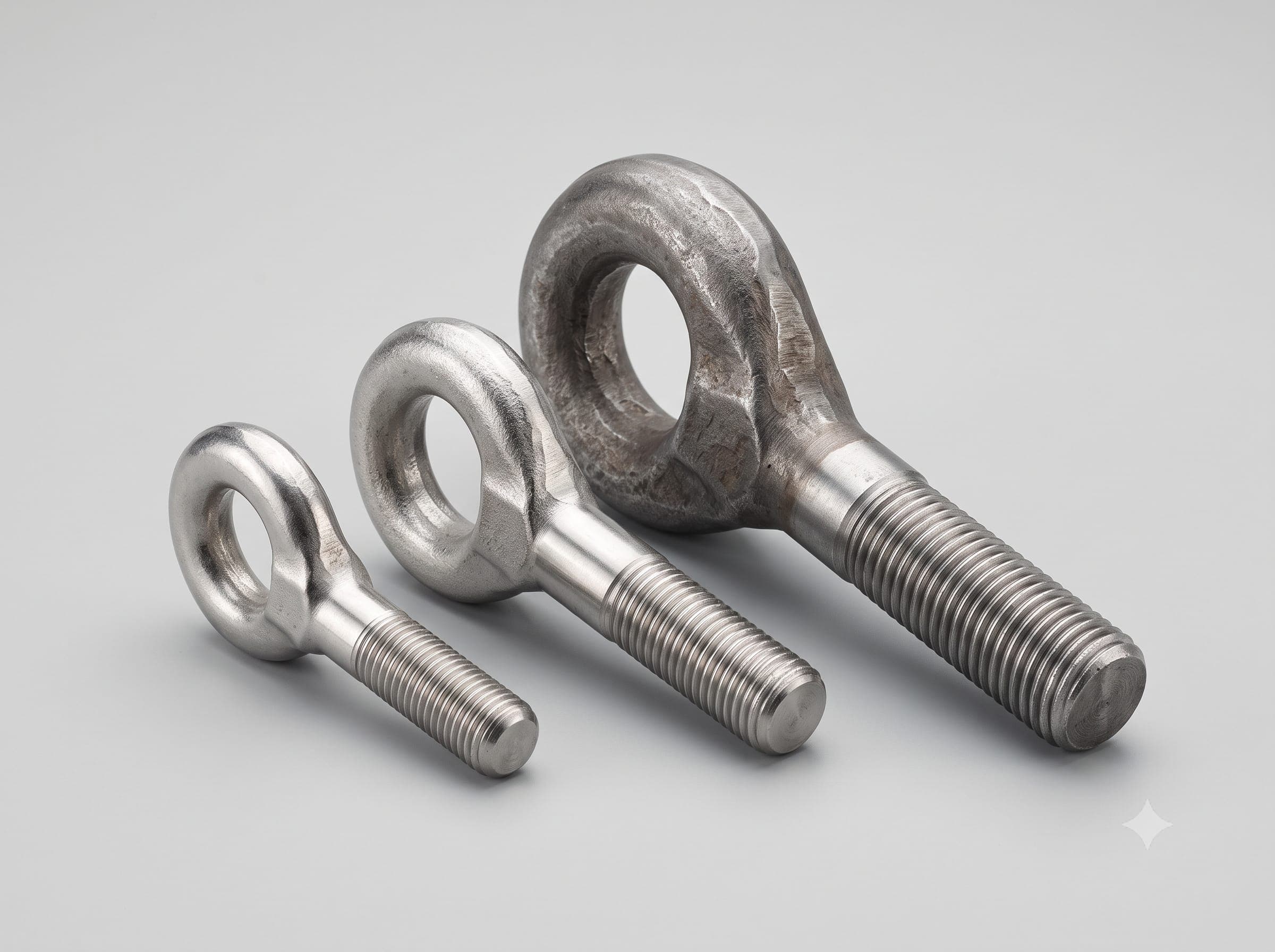

Heavy-Duty Forged Lifting Eye Bolts ('I-Ball')
hardware

Heavy-Duty Forged Lifting Eye Bolts ('I-Ball')

Drop forged lifting eye bolts and eye nut hardware manufactured in marine-grade SS 316/304, high-tensile carbon steel MS, brass, and aluminum for industrial rigging and heavy machinery transport.

Dimensions:M6 to M64 Thread Sizes (Metric / UNC Threads)
Rating / Tol:SWL 0.1 Ton to 25 Ton Working Load Limit
Steel Grades:SS 304, SS 316, SS 316L, MS (Carbon Steel A105 / C15), Brass, Aluminum
Inspection:100% Proof Load Tested, Batch Test Certification
View SpecificationsRequest Quote
Precision Forged Gear Blanks (Up to 50 kg)
closed-die

Precision Forged Gear Blanks (Up to 50 kg)

Closed die and semi-closed die forged gear blanks providing superior fatigue strength and uninterrupted grain flow for heavy industrial gearboxes and drivetrains.

Dimensions:Custom profiles up to 50 kg max weight
Rating / Tol:High Torque & Wear Resistance
Steel Grades:20MnCr5, EN353, EN19, SAE 8620, C45
Inspection:100% UT Tested, Microstructure Grain Flow Verified
View SpecificationsRequest Quote

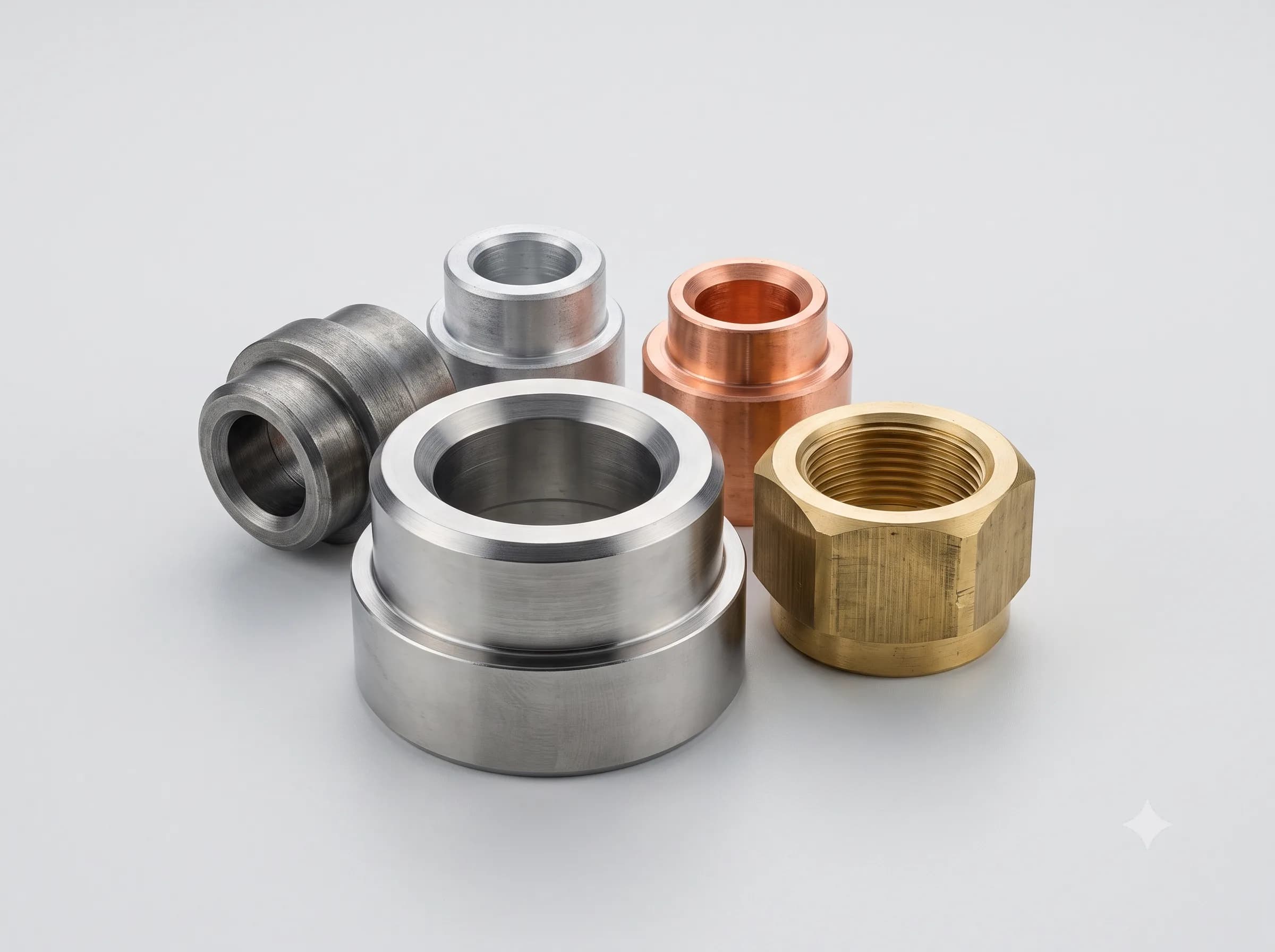

Precision Forged Couplings
closed-die

Precision Forged Couplings

Precision forged shaft couplings delivering zero backlash and maximum torque transfer for industrial power transmission systems.

Dimensions:Bore Size 10mm to 300mm
Rating / Tol:Torque Rating Up to 50,000 Nm
Steel Grades:Alloy Steel, MS, SS
Inspection:Precision CNC Machined, Zero Backlash
View SpecificationsRequest Quote

Need Custom Forging Dies or Non-Standard Components?

Our Rajkot engineering team designs custom tooling in 7-10 days for proprietary OEM drawings, non-standard flanges, and complex ring profiles.

Submit Custom CAD / Drawing RFQ
